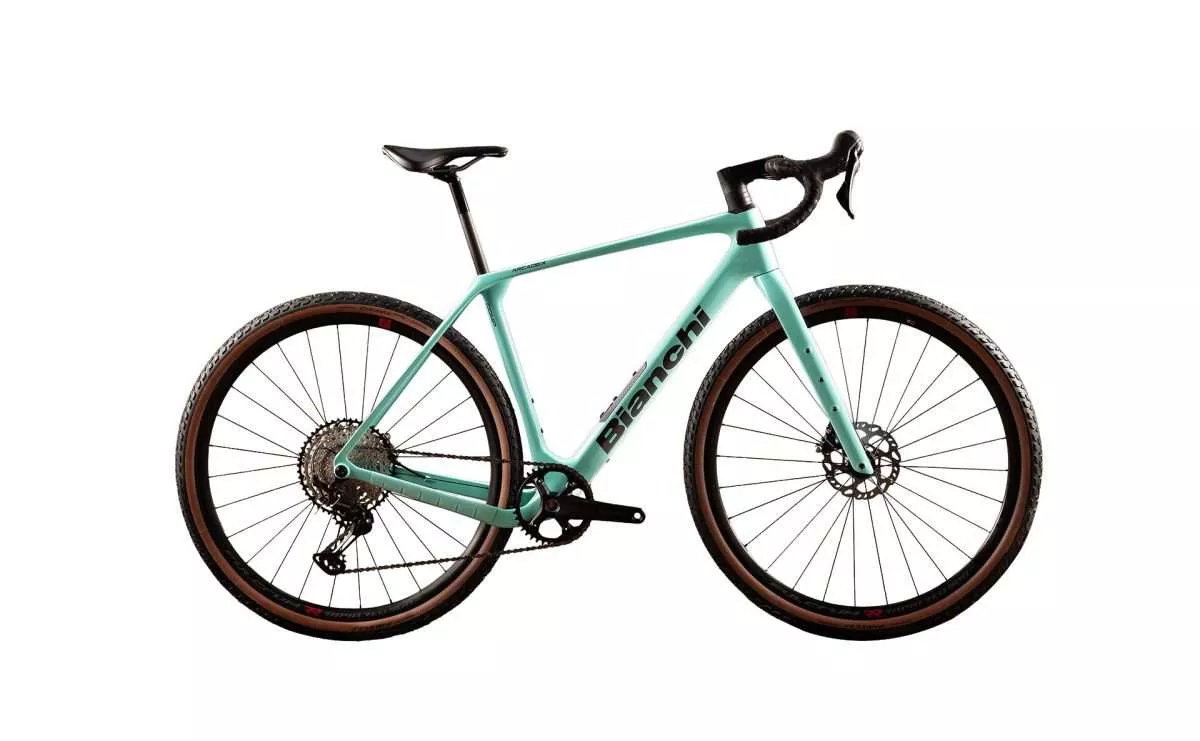

Bianchi Arcadex Comp GRX

Description

New Bianchi Arcadex adventure gravel bike has added internal frame storage and 50mm tire clearance

CLICK HERE FOR ALL BIANCHI LISTINGS

The new Arcadex COMP runs Fulcrum Rapid Red wheels, which will roll tough on challenging terrain and is offered with Shimano GRX 610 mechanical groupsets. Our designers have created two colorways for the Comp: classic celeste and graphite, or metallic sand with graphite. Both are full glossy finishes.

FRAME :Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension)FORK:Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8″” Material: Epoxy – SM Carbon Fiber CompositeHEADSET: Bianchi Custom Acros ICR (Internal Cable Routing)SHIFTERS: Shimano GRX 610 ST/BL-RX610REAR DERAILLEUR: Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51TCRANKSET:Shimano GRX 610 FC-RX610-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)BOTTOM BRACKET:Shimano SM-BB72-41B, press fitCHAIN: Shimano CN-M7100CASSETTE: Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSplineBRAKES: Shimano Hydraulic Brake, BR-RX400ROTOR: Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)WHEELS:Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mmTIRE: Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewallHANDLEBAR: Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4″” (31.8mm) HandleBar Widths: 400 – SX(47) SM(51), 420 – MD(55) LG(58), 440 -XL(61)STEM: Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8″” (28.6mm) HB interface Diameter: 1-1/4″” (31.8mm) Stem Lengths: 80mm – XS(47), 90mm – SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)GRIPS: Bianchi Hexagon tape 2.5mm thickness, Full blackSEATPOST: Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61)SADDLE: Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm

NOTE: Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
