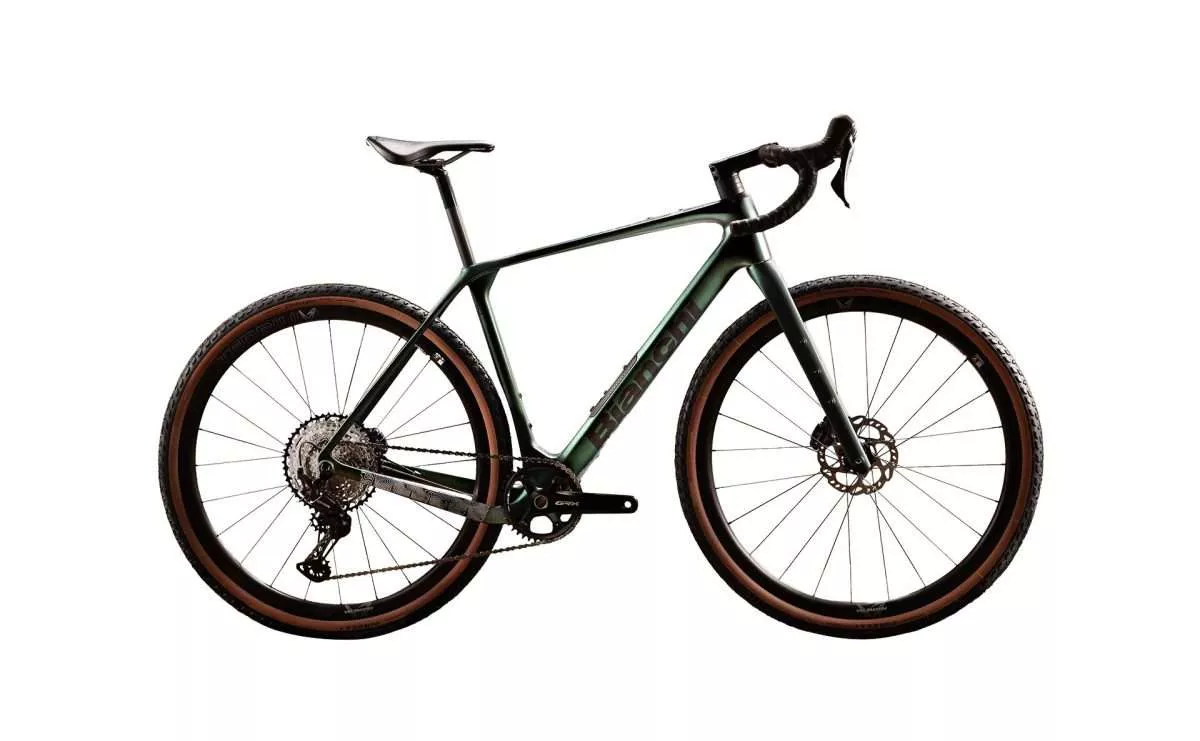

Bianchi Arcadex Pro GRX

Description

New Bianchi Arcadex adventure gravel bike has added internal frame storage and 50mm tire clearance

The new Arcadex PRO GRX comes with clearance for 50mm wide tires and internal frame storage. The Pro is offered in two full matt colourways: celeste with dark turquoise accents, or dark forest green with black detailing.

FRAME :Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension)FORK:Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8″” Material: Epoxy – SM Carbon Fiber CompositeHEADSET: Bianchi Custom Acros ICR (Internal Cable Routing)SHIFTERS: Shimano GRX 820 ST/BL-RX820REAR DERAILLEUR: Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51TCRANKSET:Shimano GRX 820 FC-RX820-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)BOTTOM BRACKET:Shimano SM-BB72-41B, press fitCHAIN: Shimano CN-M7100CASSETTE: Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSplineBRAKES: Shimano Hydraulic Brake, BR-RX820ROTOR: Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)WHEELS:Velomann Terbium clincher and tubeless ready Rim Diameter: 700C Material: Carbon Rim Height: 30 mm Inner Wigth Channel: 25 mmTIRE: Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewallHANDLEBAR: Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4″” (31.8mm) HandleBar Widths: 400 – SX(47) SM(51), 420 – MD(55) LG(58), 440 -XL(61)STEM: Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8″” (28.6mm) HB interface Diameter: 1-1/4″” (31.8mm) Stem Lengths: 80mm – XS(47), 90mm – SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)GRIPS: Bianchi Hexagon tape 2.5mm thickness, Full blackSEATPOST: Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61)SADDLE: Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel lenght: 250mm width: 149mm weight: 230g ± 2

NOTE: Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
